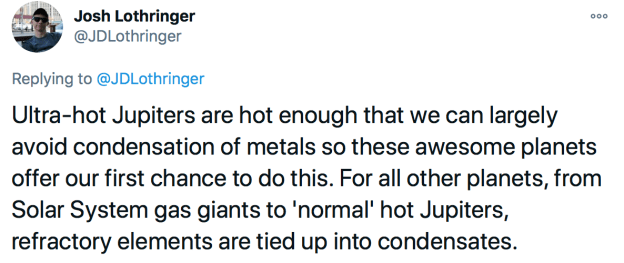

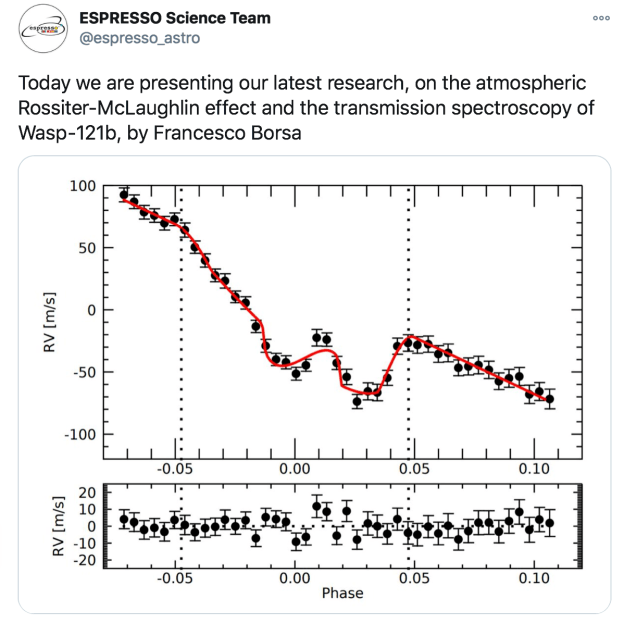

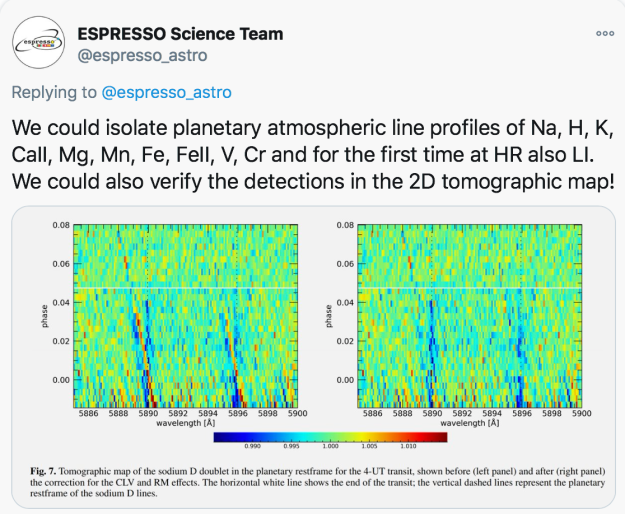

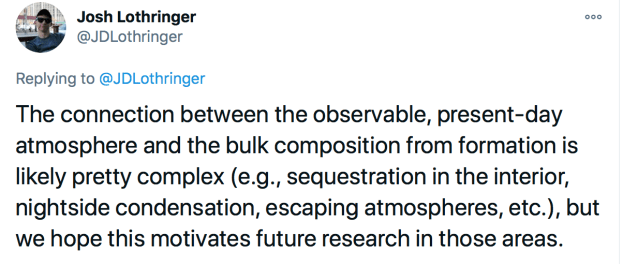

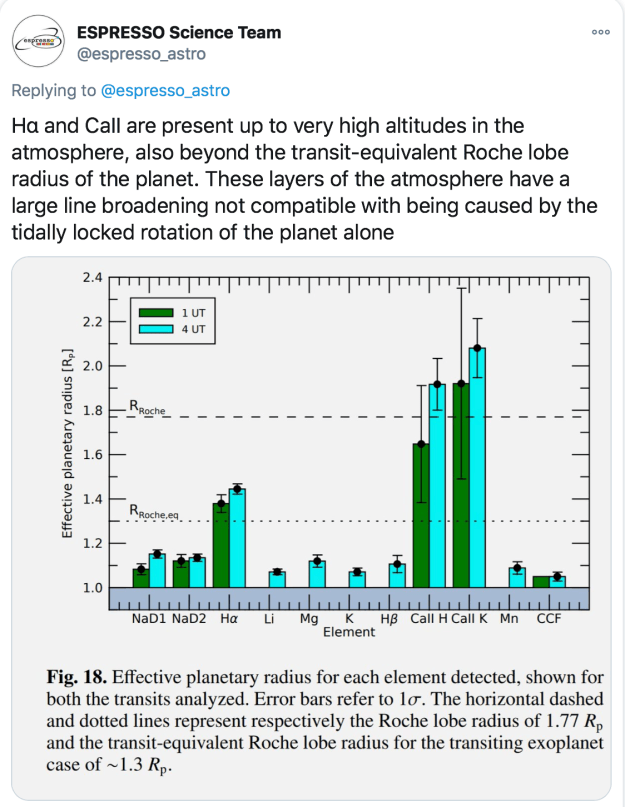

Thomas Mikal-Evans et al have released a new paper analysing the heated, dayside face of WASP-121b. Teams studying the atmospheres of exoplanets either look at the transit, when the planet’s atmosphere is projected against the host star, such that molecules produce absorption features in the spectrum, or they study the eclipse, when the heated face of the planet disappear and then reappears. In the latter, atmospheric molecules produce emission features in the spectrum.
Here is the spectrum of the heated face of WASP-121b, based on recording five eclipses using the WFC3 spectrograph on the Hubble Space Telescope. The orange line and yellow banding show the spectrum expected for a pure black body of the same temperature as the planet. The red lines then show model fits, which reveal emission features caused by H− ions and water (H2O) molecules.
Three papers this week arrived on arXiv about the ultra-hot-Jupiter WASP-121b. All three report similar findings (and the near-simultaneous arrival on arXiv presumably reflects the teams being aware of the competition). Cabot et al analyse spectra of WASP-121b from the ESO 3.6-m/HARPS spectrograph, Bourrier et al also analyse HARPS data, while Gibson et al analyse data from UVES on ESO’s 8-m VLT.
All three teams then apply velocity shifts to correct for the orbital motion of the star, in order to try to detect features from the planet. The result is a plot looking like (this is the one from Bourrier et al):
As in the plot for WASP-107b, just below, this shows the spectra as a function of time, through transit. The extra absorption during transit (delineated by dashed lines) is from the atmosphere of the planet absorbing starlight while it is projected against the star’s face. The faint diagonal feature (marked by the green line) is the signal from the planet’s atmosphere, moving with the planet’s orbital velocity.
The three papers report the detection of lines from neutral iron in the planet’s atmosphere, and discuss the possible role of iron absorption in producing an atmospheric temperature inversion. The papers also report a blue-shift of the iron absorption, of order 5 km/s, which could be produced by strong winds running round the planet. That is expected in phase-locked planets, where heat from the irradiated face must be transported round to the night side.
The moon’s gravity causes a tidal bulge in Earth’s oceans, so that the water facing the moon is raised several metres. Similarly, close-orbiting exoplanets will have a tidally distorted shape, with a tidal bulge facing the host star. The amount of distortion can be quantified by the “Love number” h (named after the mathematician Augustus Love)
Specifically, h2 tells us the relative height of the tidal bulge, and would be zero for a perfectly rigid body that did not distort at all, and would be 2.5 for a perfectly fluid body that adapted fully to the tidal potential. Gas-giant planets have large envelopes of gaseous fluid, so would be expected to have fairly high values of h2. However, they also might have rocky or metallic cores, and so would have values less than 2.5. For example Jupiter has h2 = 1.6 while Saturn has h2 = 1.4.
A new paper by Hugo Hellard et al discusses whether h2 for a hot-Jupiter exoplanet can be measured from the shape of the transit lightcurve, given good-enough photometry such as that from the Hubble Space Telescope.
The main problem is that the transit profile is heavily affected by variations in the brightness of the stellar disc, in particular the limb darkening (a star’s limbs appear a bit dimmer, because a tangential line-of-sight into a gas cloud skims only the cooler, upper layers). Thus the Hellard et al paper discusses at length different ways to model the limb darkening.
The end-result, however, is a claim to have measured h2 for WASP-121b, with a value of h2 = 1.4 ± 0.8. This is not (yet) a strong constraint, but points to the potential in the future, and also flags up the need to understand and properly parametrise limb darkening.
As is sometimes the way when prime observations are open access, two independent papers (Daylan et al 2019; Bourrier et al 2019) have, on the same day, announced independent analyses of the TESS lightcurve of the ultra-hot Jupiter WASP-121b.
The phase curve shows the transit (time zero), a “phase curve” modulation caused by the varying visibility of the heated face of the planet (illustrated by schematics of the planet), and the eclipse (when the planet passes behind the star, at −15 hr).
Both analyses report similar findings, saying that the heated “hot spot” directly faces the star, rather than being offset in phase, which suggests that any re-circulation of heat by planetary winds is inefficient.
The planet’s atmosphere shows a temperature inversion (it is hotter at higher altitudes), which could result from absorption of heat by molecules of titanium and vanadium oxide, and H-minus ions.
WASP-121b is one of the hottest WASP planets, since it is fiercely irradiated by being in a very tight orbit of only 1.27 days around a hot F star. The Hubble spectra show clear absorption features caused by metals including Magnesium and Iron:
“Heavy metals have been seen in other hot Jupiters before, but only in the lower atmosphere,” explains David Sing, “So you don’t know if they are escaping or not. With WASP-121b, we see magnesium and iron gas so far away from the planet that they’re not gravitationally bound.”
“The heavy metals are escaping partly because the planet is so big and puffy that its gravity is relatively weak. This is a planet being actively stripped of its atmosphere.”
The Hubble press release continues: “This exoplanet is also a perfect target for NASA’s upcoming James Webb Space Telescope to search in infrared light for water and carbon dioxide, which can be detected at longer, redder wavelengths. The combination of Hubble and Webb observations would give astronomers a more complete inventory of the chemical elements that make up the planet’s atmosphere.”
STSci have produced an artist’s impression of WASP-121b, showing how the planet’s shape is tidally distorted by the gravity of the star that it orbits:
The press release has led to coverage on over 50 news and science websites, including Newsweek, CNN, Fox News, Metro, The Daily Mail, The Express, and countries including Switzerland, Germany, India, and Malaysia.

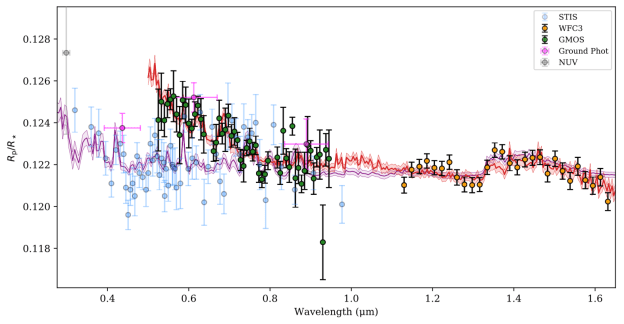

The latest Hubble Space Telescope spectrum of a WASP exoplanet has just been published by Thomas Evans et al. The spectrum of WASP-121b extends from near-UV wavelengths through the optical to the infra-red, combining data from three different gratings (shown in different colours in the figure):
Of particular interest is the rapid rise in the data in the near-UV (the extreme left of the plot), which is clearly out of line with the fitted model (purple lines). The rise is too rapid to be attributed to Rayleigh scattering in a clear atmosphere.
Instead, the authors suggest that it is due to sulfanyl, a molecule consisting of one sulfur and one hydrogen. Evans et al conclude that the near-UV absorber “likely captures a significant amount of incident stellar radiation at low pressures, thus playing a significant role in the overall energy budget, thermal structure, and circulation of the atmosphere”.
The work points to the ongoing importance of the Hubble Space Telescope, even after the James Webb Space Telescope is launched, since the JWST is designed for infrared astronomy, and can’t see the near-UV wavelengths that can be observed with Hubble.
Update: One of the authors, Jo Barstow, has tweeted the following thread on the @astrotweeps account:
NASA JPL have put out a press release about ultra-hot Jupiters including WASP-18b, WASP-103b and WASP-121b.
The work, led by Vivien Parmentier, used the Spitzer and Hubble space telescopes to study how the planets’ atmospheres change from the irradiated day side to the cooler night side.
“Due to strong irradiation on the planet’s daysides, temperatures there get so intense that water molecules are completely torn apart. […] fierce winds may blow the sundered water molecules into the planets’ nightside hemispheres. On the cooler, dark side of the planet, the atoms can recombine into molecules and condense into clouds, all before drifting back into the dayside to be splintered again.”
“With these studies, we are bringing some of the century-old knowledge gained from studying the astrophysics of stars, to the new field of investigating exoplanetary atmospheres,” said Parmentier.
Harvard’s CfA have also produced a press release on the work, focusing on the analysis of WASP-103b led by Laura Kreidberg.
“A crucial observational advance by Kreidberg and her team was that they observed the planet for an entire orbit, enabling them to map the climate at every longitude and derive detailed information about the temperatures on the planet’s dayside and nightside. This is only the second time that such a complete exoplanet observation has been performed with HST.”
Orbiting a hot F-star in only 1.27 days, WASP-121b is a highly irradiated hot Jupiter found by Laëtitia Delrez et al using the WASP-South survey. A team led by Tom Evans at Exeter has now pointed the Hubble Space Telescope at WASP-121b and found that its atmosphere shows a “stratosphere”. That is, the higher layers of the atmosphere appear to be hotter than the lower layers.
This is possible if molecules high in the atmosphere absorb radiation very efficiently. The “stratosphere” interpretation comes from finding spectral features caused by water, but seeing them in emission (as expected if the atmospheric temperature increases with height) rather than in absorption (expected if the temperature declines with height).
The data show the Hubble spectrum observed during transit using the WFC3 instrument. The red line is a model including a stratosphere. The blue lines are, for comparison, colder “brown dwarfs” which don’t have a stratosphere. The WFC3 data (circles with error bars) clearly favour the stratosphere interpretation.
NASA have put out a press release about the discovery, while the press team at Exeter have produced an illustration of the highly irradiated planet:
The hot Jupiter WASP-121b, discovered recently by Laetitia Delrez et al, is a very good opportunity for learning what the atmosphere of an exoplanet is made of. Being in a close, 1.27-day orbit around a hot star makes the atmosphere hot, while being a bloated planet of 1.9 Jupiter radii makes the atmosphere puffy. That means one can observe the planet in transit, projected against its star, and readily observe spectral features caused by the atmosphere absorbing star light.
Thomas Evans et al have pointed the Hubble Space Telescope at WASP-121b. To model the resulting spectrum they find they need an atmosphere containing titanium oxide, vanadium oxide, and iron hydride. In the plot below, models with these molecules are plotted red and yellow, and fit the observations, while models without, plotted in green and purple, do not.
The model also shows that WASP-121b has clear skies, rich in water vapour. It looks as though WASP-121b will become one of the most important exoplanets for such atmospheric characterisation work.
